Y-Motor mount sub-assembly

1. Slide a 295 mm (1 dot) threaded rod through the bottom hole of the Y-motor mount
2. Affix the motor mount to the center of the threaded rod using a M8 washer and a M8 nut on each side of the mount

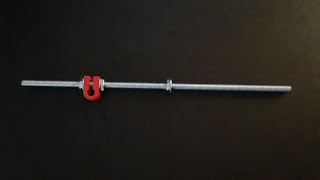

3. Slide a 295 mm (1 dot) threaded rod through a bar clamp
4. Affix the clamp to the rod using M8 washers and nuts as in step 2. The clamp should be approximately 1/4 of the way down the rod



5. Attach a M8 nut and washer to the bar clamp rod at the half-way point



6. Slide the bar clamp rod through the top hole of the Y-motor mount assembly



7. On the unsecured side of the bar clamp rod, affix the following
   1. M8 Mudguard washer
   2. M8 washer
   3. 608zz bearing
   4. M8 washer
   5. M8 Mudguard washer
   6. M8 nut






8. Add an additional bar clamp to the open end of the bar clamp rod per steps 3 & 4
