Prepare Mechanical Endstops

  1. Affix connectors to the wire leads

  2. Attach the motor connector ends to the outer two legs of the three mechanical endstops
    1. Note: polarity does not matter for this type of switch

  3. Insert the switches into the endstop mounts

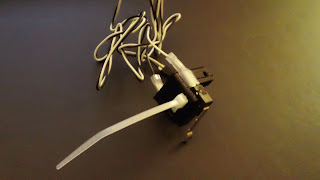

  4. Secure the switches to the endstop mounts with zip-ties
