Set Bar clamp spacing

1. Orient the frame such that the Y-Motor mount is on the far side of the unit

2. Set the spacing for the two left side bar clamps such that the inside of the clamps are 25 mm from the inside of the footed vertices

3. Set the spacing for the two right side bar clamps such that the inside of the clamps are 36 mm from the inside of the footed vertices

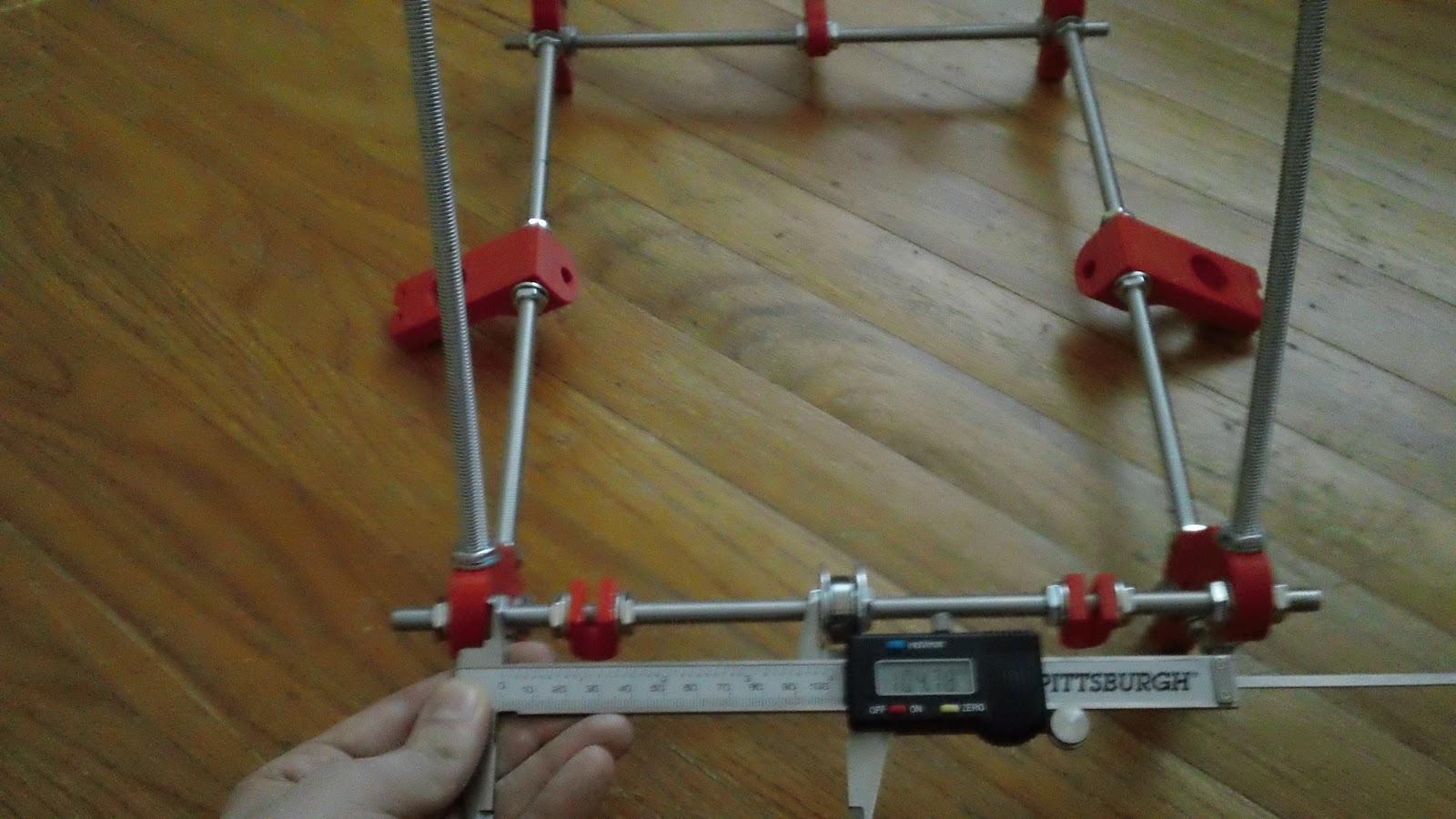

4. Set the spacing for the bearing assembly such that the distance from the inside of the left footed vertex to the inside of the left mudguard washer is 104.78 mm


5. Orient the frame such that the Y-Motor mount is on the near side of the unit
6. Set the spacing from the inside wall of the left footed vertex to the inside wall of the Y-Motor mount to 107 mm
